CS+ SS Induction Cap Sealers
The CS+ SS line is our cutting-edge self-cooled induction cap sealer, engineered to excel at your highest line speeds. With no fans or cooling water requirements, it guarantees unparalleled reliability and performance.
The CS+ SS seamlessly integrates with your filling and capping line, accommodating speeds of up to 350 feet per minute. From the moment it arrives, the CS+ SS is ready to seal caps ranging from 5mm to 120mm. Setup is a breeze, and no assembly is required. It features intuitive controls, and includes an “Energy Saver Mode” for optimal efficiency.
Key Benefits:
- Water-free operation: Say goodbye to water systems and plumbing hassles.
- Fan-free sealing head: Eliminates the need for filter changes and reduces downtime.
- Maintenance-free: With no moving parts, upkeep is a thing of the past.
- Quick and easy setup: Simply uncrate and roll it up to your line, no assembly required.
Features
Advanced Convection Cooling: Operates efficiently in high ambient temperature and humidity conditions.
Precise Sealing Head Adjustment: Easily adjust the sealing head height for smooth and accurate sealing.
High-Efficiency Solid State Design: Equipped with state-of-the-art sealing heads for optimal performance.
System Integrity Monitoring: Monitors power, current, frequency, phase, temperature, and other parameters for enhanced reliability.
Sturdy Stainless Steel Enclosure: NEMA 4-approved enclosure and durable exterior ensure durability.
User-Friendly Controls: Intuitive LCD controls allow for easy adjustment of operating parameters.
Auto-Configure Feature: Enables the system to automatically adjust settings in response to detected conditions of the bottles passing through it.
Stalled Bottle Detection: Alerts users if bottles are stalled or jammed under the sealing unit.
Alignment Monitoring: Detects off-centered bottles under the sealing head.
Line Speed Monitoring: Keeps track of conveyor speed and automatically adjusts power for consistent sealing.
Adjustable Alarm Filter: Allows operators to set sensitivity levels according to their preference.
Energy Saving Mode: Reduces power consumption when no bottles are detected under the coil, promoting energy efficiency.
Tech Specs
| CS+ 350 SS | CS+ 200 SS | |
|---|---|---|
| Input | 230±10% V AC, 10 Amps, 50/60 Hz, 1 phase, (optional 3 phase) | 230VAC, 7 Amps, 50/60 Hz, 1 phase |
| Max Line Speed* | 350 ft/min | 200 ft/min |
| Cap Size | 5mm-120mm | 5mm-120mm |
| Weight | 200 lbs. | 175 lbs. |
| Crated (Shipping) Weight | 250 lbs. | 225 lbs. |
| Height | 80 in. | 80 in. |
| Height Under Sealing Head | 40 in. - 60 in. | 40 in. - 60 in. |
| Footprint | 30 in. x 32 in. | 30 in. x 32 in. |
*Maximum line speed is highly dependent on the cap and liner type of your chosen container.

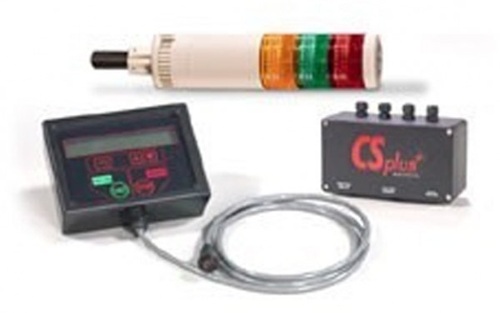

Accessories
- Interface Panel: Enables the use of accessories such as a remote control panel with five remote inputs and three relay outputs.
- Light Tower: Keeps operators informed of status changes through three color indicators (green, yellow, and red) and an audible alarm.
- Cap Inspector: Identifies all common fault conditions during the sealing process, including:
- No foil in Cap
- Missing Cap
- Cocked Cap
- Bottle Misalignment
- Bottle Down
- Idle State (No Bottles)
